DC SPD (Surge Protective Device), 2P, < = 600VDC/ 1000VDC
A surge protector (or spike suppressor, surge suppressor, surge shunt, surge protection device (SPD), or transient voltage surge suppressor (TVSS)) is an appliance or device designed to protect electrical equipment from voltage spikes in AC circuits.Surge protectors are also widely used in direct current photovoltaic (PV) systems where the DC voltage is less than or equal to 1500VDC.When a circuit or communication line suddenly generates a surge current or voltage due to external interference, a surge protector can conduct and avoid the current in a very short period of time, thus preventing the surge from causing damage to other equipment in the circuit.It is a Class II device designed to protect against transient overvoltages caused by fast switching operations or indirect lightning strikes.It discharges induced voltage surges (8/20 μs) and is suitable for use as a second level of protection in power distribution boards fitted with a Class 1 protector, or as a first level of protection in applications that are not directly exposed to lightning strikes and do not have an external lightning protection system.The EKU5-T2-40PV Surge Protectors are DC Surge Protectors designed specifically for use with photovoltaic power supply systems.These devices must be installed in parallel on the DC grid to be protected and provide common mode and different mode protection.It is recommended that they be installed at both ends of the DC power line (solar panel side and inverter/converter side), especially if the line path is long.
Related products
- Certificate: CE;
- Rated voltage 600VDC/ 1000VDC;
- Applications:
DC Surge Protection Devices (DC SPDs) include solar power systems to protect photovoltaic (PV) panels and inverters from overvoltage; electric vehicle (EV) charging stations to protect charging modules; and energy storage systems to ensure battery safety. They are also used in telecom systems to protect base stations and data centres, as well as in railway and metro systems to ensure the safety of DC-powered traction and signalling equipment. In addition, DC SPDs are critical for LED lighting systems, industrial automation, and other DC-powered equipment, providing reliable protection against voltage spikes to ensure system longevity and stability.
- Altitude: ≦ 2000 metres;
- Ambient temperature: -5 °C ~ +40 °C;
- Installation category: Ⅲ.
- Installation conditions: The inclination angle between the installation plane and the vertical plane shall not exceed ± 5°;
- Standard: GB/T18802.31; IEC/EN 61643-31
- 2 years warranty
|

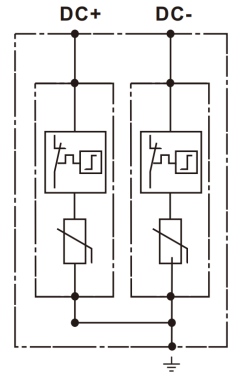

Model Number |
EKU5-T2-40PV-2P |
|
|
Electrical Features |
No. of poles |
2P |
|
Protective elements |
High Energy MOV |
|
|
Maximum continuous operating voltage (Ucpv) |
600VDC/ 1000VDC |
|
|
Normal discharge current (8/20μs) (In) |
20kA |
|
|
Maximum discharge current (8/20μs) (Imax) |
40kA |
|
|
Voltage protection level DC+/DV-to PE |
≤2.6kV (600VDC)/ ≤4.0kV (1000VDC) |
|
|
Response time (L-N)/(N-PE) (tA) |
≤25ns/≤100ns |
|
|
RS485 communication |
Optional |
|
|
Mechanical Features |
Operating state/fault indication |
Green/Red(L-N),Yellow(N-PE) |
|
Enclosure material |
Thermal Plastic UL94-V0 |
|
|
Contact position indicator |
Yes |
|
|
Protection degree |
IP 20 |
|
|
Reference temperature for setting of thermal element |
30°C |
|
|
Ambient temperature (with daily average ≤35°C) |
-5°C~+40°C |
|
|
Storage temperature |
-40°C~+80°C |
|
|
Installation |
Terminal connection type |
Cable/ Pin-type busbar / U-type busbar |
|
Terminal size top/bottom for cable |
25mm2; 18-3AWG |
|
|
Terminal size top/bottom for busbar |
25mm2; 18-3AWG |
|
|
Cross-section area (Min.)/(Max.) |
4mm2/35mm2 |
|
|
Tightening torque |
2.5Nm 22In-lbs |
|
|
Mounting |
On DIN rail EN60715(35mm) by means of fast clip device |
|
|
Connection |
From top |
|
|
Packing information |
Net weight (Kg) |
0.18 |
|
Product dimensions (H*W*D)(mm) |
94*36*68 |
|
|
Qty / Carton (pcs) |
90 |
|
|
G.W. / Carton (Kg) |
17 |
|
