DC MCB (Miniature Circuit Breaker), 1,2,4P (1,2,4 Pole) (NO), < = 1000VDC
EKM1-125DCseries Miniature Circuit Breakerswith over current protection range provide a full protection to both the persons and the electrical appliances, as they are designed to automatically cutoff the power supply in case of overload, short-circuit and earth leakage.
They can be used as protection devices for 150~1000VDC network.
Its maximum rated current reaches 125A.
The MCB is equipped with an indication window to distinguish overload trips (indication window turns red).
Related products
No data
- Certificate: CE.
- Rated voltage: 250~1000VDC;
- Applications:
For three-phase and single-phase equipment such as escalators, lifts, photovoltaic systems, welding equipment, inverters, energy storage and other DC applications.
- Altitude: ≦ 2000 metres;
- Ambient temperature: -5 °C ~ +40 °C;
- Installation category： Ⅲ
- Installation conditions: The inclination angle between the mounting plane and the vertical plane shall not exceed ± 5°;
- Standard: GB/T10963.1, IEC60947-2
- 2 years warranty
|
Model Number |
EKM1-125DC |
|
|
Electrical Features |
Mode |
Electromagnetic |
|
Type |
DC |
|
|
Rated current In |
80, 100, 125A |
|
|
Poles |

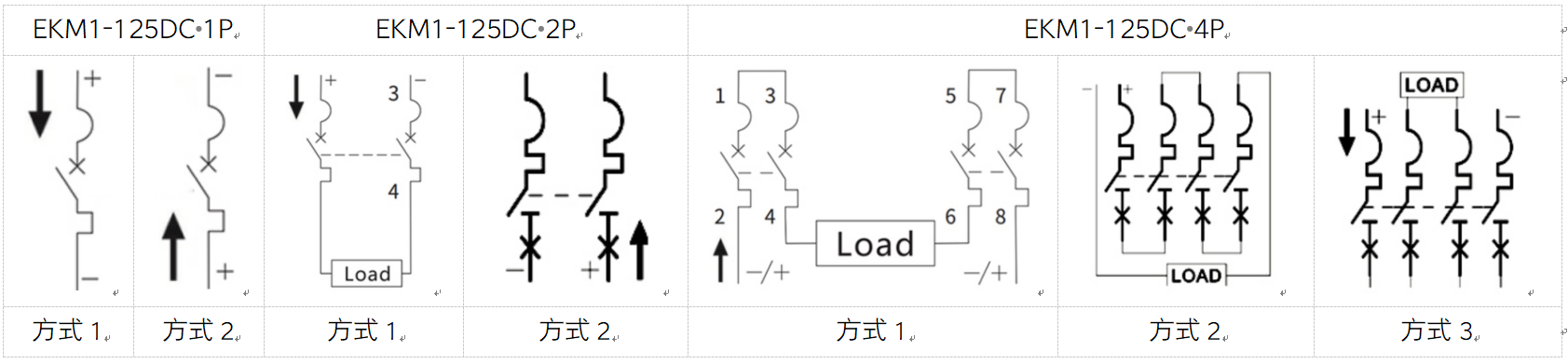

1P, 2P, 4P |
|
|
Rated voltage Ue |
250VDC (1P), 500VDC (2P), 1000VDC (4P) |
|
|
Insulation voltage Ui |
500V |
|
|
Rated frequency |
 |
|
|
Break time under (I△n) |
≤0.1s (S type ≤ 0.5s) |
|
|
Rated breaking capacity |
6,000A |
|
|
Energy limiting class |
3 |
|
|
Rated impulse withstand voltage(1.5/50)Uimp |
4,000V |
|
|
Dielectric test voltage at ind.Freg.for 1min |
2kV |
|
|
Pollution degree |
2 |
|
|
Thermo-magnetic release characteristic B :(3-5) x In, C:(5-10) x In, D :(10-20) x In |
B, C, D |
|
|
Mechanical Features |
Electrical life |
4,000 Cycles |
|
Mechanical life |
10,000 Cycles |
|
|
Contact position indicator |
Yes |
|
|
Protection degree |
IP 20 |
|
|
Reference temperature for setting of thermal element |
30°C |
|
|
Ambient temperature (with daily average ≤35°C) |
-5°C~+40°C |
|
|
Storage temperature |
-25°C~+70°C |
|
|
Installation |
Terminal connection type |
Cable/ Pin-type busbar / U-type busbar |
|
Terminal size top/bottom for cable |
25mm2; 18-3AWG |
|
|
Terminal size top/bottom for busbar |
25mm2; 18-3AWG |
|
|
Tightening torque |
2.5Nm 22In-lbs |
|
|
Mounting |
On DIN rail EN60715(35mm) by means of fast clip device |
|
|
Connection |
From top / button |
|
|
Packing information |
Net weight (Kg) |
0.12 (1P), 0.24 (2P), 0.48 (4P) |
|
Product dimensions (H*W*D)(mm) |
81*18*78 (1P); 81*36*78 (2P); 81*72*78 (4P); |
|
|
Qty / Carton (pcs) |
120 (1P); 60 (2P); 30 (4P) |
|
|
G.W. / Carton (Kg) |
15.4 |
|
