AC RCBO (Residual Current Circuit Breaker with Overload Protection), 3P+N (4 Pole) (NO), AC-3/AC-3e, < = 440V
EKL5-63(H)series Residual current circuit breakers with overcurrent protection range provide a full protection to both the persons and the electrical appliances, as they are designed to automatically cutoff the power supply in case of overload, short-circuit and earth leakage.
They can be used as protection devices for 415V three-phase circuits.
Its maximum rated current reaches 63A, and the minimum leakage current has 4 options: 10mA, 30mA, 100mA, and 300mA.
The RCBO is equipped with an indication window and a reset button to distinguish between residual current trips (reset button pops up) and overload trips (indication window turns red).
The RCBO is in three or five DIN modules, so it is easier to install than the common solution MCB + add-on blocks.
- Certificate: CE;
- Electric ratings: AC 50/60HZ, 415V;
- Application:
Type AC: They are commonly installed in homes and meant to be used for alternating sinusoidal residual current to offer inductive, capacitive, or resistive equipment. These RCBOs operate instantaneously to detect imbalance and do not have a time delay.
Type A: Are used for residual pulsating DC of up to 6mA and alternating sinusoidal residual current
Type B: They are used for three and single-phase equipment such as escalators, lifts, photovoltaic systems, welding equipment, and inverters.
- Altitude: ≦ 2000m;
- Ambient temperature: -5℃ ~ +40 ℃;
- Mounting category: Ⅲ;
- Mounting conditions: Inclination between the mounting plane andthe vertical plane should not exceed ± 5°;
- Standard: GB/T16917.1, IEC/EN 61009-1;GB/T22794, IEC62423 (B type)
- 2 Years warranty
|

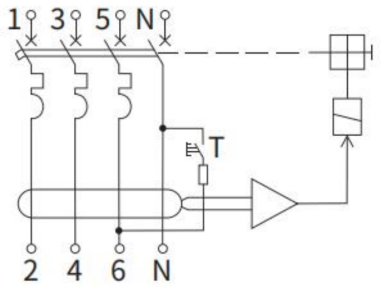

Model Number |
EKL5-63(H) |
|
|
Electrical Features |
Mode |
Electronic |
|
Type |
AC; A; S; B |
|
|
Rated current In |
6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63A |
|
|
Poles |
3P+N (4P) |
|
|
Rated voltage Ue |
4P 415V~ |
|
|
Insulation voltage Ui |
500V |
|
|
Rated frequency |
50/60Hz |
|
|
Rated residual operating current (I△n) |
10, 30, 100, 300mA (AC; A; S type); 30, 100, 300mA (B type); |
|
|
Break time under (I△n) |
≤0.1s (S type ≤ 0.5s) |
|
|
Rated breaking capacity |
EKL5-63 6,000A EKL5-63H 10,000A |
|
|
Energy limiting class |
3 |
|
|
Rated impulse withstand voltage(1.5/50)Uimp |
4,000V |
|
|
Dielectric test voltage at ind.Freg.for 1min |
2kV |
|
|
Pollution degree |
2 |
|
|
Thermo-magnetic release characteristic B :(3-5) x In, C:(5-10) x In, D :(10-20) x In |
B, C, D (AC; A; S type); B, C (B type); |
|
|
Mechanical Features |
Electrical life |
4,000 Cycles |
|
|
Mechanical life |
10,000 Cycles |
|
|
Contact position indicator |
Yes |
|
|
Protection degree |
IP 20 |
|
|
Reference temperature for setting of thermal element |
30°C |
|
|
Ambient temperature (with daily average ≤35°C) |
-5°C~+40°C |
|
|
Storage temperature |
-25°C~+70°C |
|
Installation |
Terminal connection type |
Cable/ Pin-type busbar / U-type busbar |
|
|
Terminal size top/bottom for cable |
25mm2; 18-3AWG |
|
|
Terminal size top/bottom for busbar |
25mm2; 18-3AWG |
|
|
Tightening torque |
2.5Nm 22In-lbs |
|
|
Mounting |
On DIN rail EN60715(35mm) by means of fast clip device |
|
|
Connection |
From top |
|
Packing information |
Net weight (Kg) |
0.36 |
|
|
Product dimensions (H*W*D)(mm) |
94*90*78 |
|
|
Qty / Carton (pcs) |
50 |
|
|
G.W. / Carton (Kg) |
19 |
